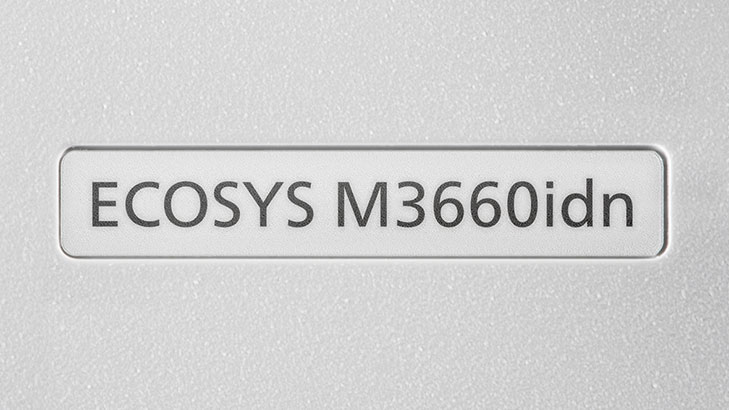

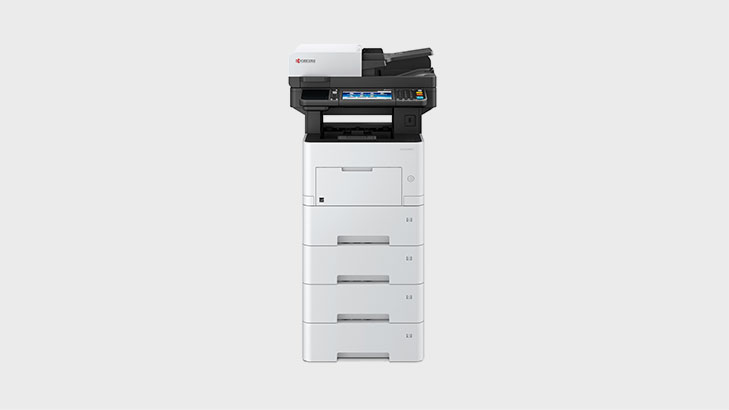

ECOSYS M3660idn

This Multi-Functional Product is for dynamic teams (small to large in size) with high demands of productivity and software efficiency, while offering exceptionally low running costs.

  • Double-sided print and copy, scan and fax.
  • Cuts running costs down to almost nothing.
  • Quick scanning with the Single Pass Duplex scanning feeder.

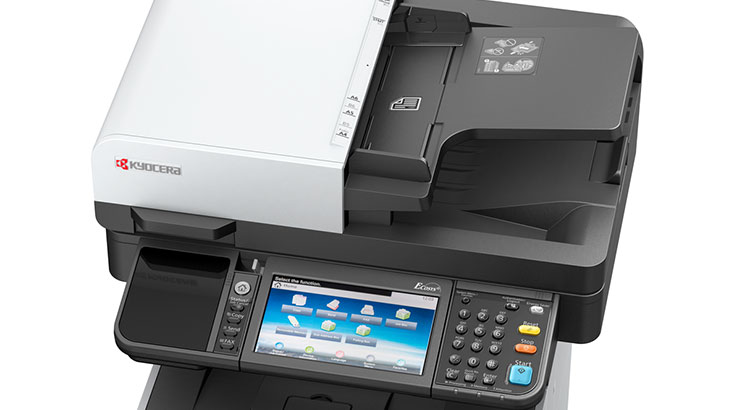

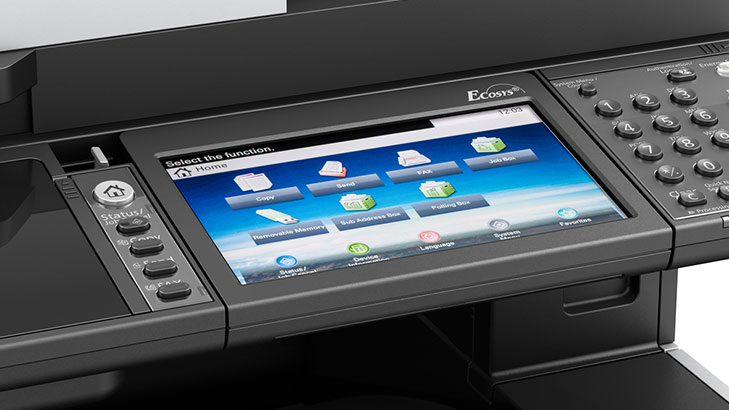

  • 7-inch full-colour touch panel provides ease of use.
  • HyPAS™ solution platform enables powerful customisations.
  • Provide OCR and Microsoft Office scan possibilities (optional).
Hastighet

Up to 60 pages A4 per minute Duplex print speed: 43 page per minute, A4 Duplex copy speed: 43 page per minute, A4

Oppløsning

1200 x 1200 dpi (print) 600 x 600 dpi (scan/copy)

Mål (B x D x H)

480 x 495 x 590 mm

Warranty

Additional warranty on long-life parts for 3 years or 500 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • Driving efficiency through sustainability

    The ECOSYS range provides new meaning to sustainability & product development, focusing on the environment through its approach.

  • Powerful, reliable and economical

    Powerful, reliable and economical

    Whether on your desktop of in office production – be it in colour or black and white: with KYOCERA, you always achieve the best possible print quality while easily controlling your output costs.  KYOCERA devices and their components have been designed to be extremely reliable and highly economical.

    Powerful, reliable and economical
    Powerful, reliable and economical

    For a printer that can be trusted to produce the goods whenever required.

  • ECOSYS: The sustainable solution

    ECOSYS: The sustainable solution

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

    ECOSYS: The sustainable solution
    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

  • ECOSYS M3660idn drivers
  • ECOSYS M3660idn documentation
  • ECOSYS M3660idn software

Main Specifications

General
  • General
  • Paper handling
  • Print
  • Copy
  • Scan
  • Fax
Generell type
b/w multifunctional for A4 format
Hastighet
Up to 60 pages A4 per minute Duplex print speed: 43 page per minute, A4 Duplex copy speed: 43 page per minute, A4
Oppvarming
Approx. 25 seconds or less from power on
Energiforbruk
Printing: 723 W Copying: 746 W Low power mode: 30 W Ready mode: 54 W Sleep-mode: 0.5 W
Garanti
1-year warranty as standard.** KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
Magasinkapasitet
Multi-purpose tray: 100 sheets, 60–220g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm). Standard universal paper cassette: 500 sheet, 60–120 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm).
Maks. innkapasitet med alternativer
2,600 sheets
Dupleks enhet
Standard duplex unit, 60–120 g/m2, A4, A5, B5, Letter, Legal
Produksjonskapasitet for papirhåndtering
Max. 500 sheets face-down with paper full sensor
Dokumentmater
Dual scan document processor as standard with double feed detection sensor, 100 sheets, 50–120 g/m2, A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
Prosessor
ARM Cortex-A9 1,2 GHz
Skrifttyper
93 outline fonts (PCL6/KPDL 3), 8 fonts (Windows), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Funksjoner
PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3
Operativsystem (Print)
All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
Maks. størrelse
A4/Legal
Kontinuerlig kopiering
1 - 999
Zoom
25 - 400 % in 1% steps
Forstørrelsesnivåer
7 Reductions / 5 Enlargements
Bildejusteringer
Text + photo, text, photo, graphic/map
Funksjoner
Electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page
Funksjoner
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN, WIA, WSD scan
Hastighet
60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi, A4 colour), 100 ipm (300 dpi, A4, b/w) (Duplex), 74 ipm (300 dpi, A4 colour) (Duplex)
Scan features
Banner Scan, Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
Oppløsning
600, 400, 300, 200 dpi 256 greyscales per colour
Maks. størrelse
A4 / Legal
Filtype
TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)
Bildeoptimalisering
Text, photo, text + photo, light text, optimised for OCR
Kompatibilitet
ITU-T Super G3
Modem
Max. 33.6 kbps
Hastighet
2.0 seconds/sheet or less
Overføringshastighet
Max. 3 seconds (JBIG)
Maks. størrelse
Normal: 8 dot/mm x 3.85 line/mm (200 x 100 dpi) Fine: 8 dot/mm x 7.7 line/mm (200 x 200 dpi) Superfine: 8 dot/mm x 15.4 line/mm (200 x 400 dpi) Ultrafine: 16 dot/mm x 15.4 line/mm (400 x 400 dpi) Halftone: 256 grey scales
Maks. størrelse
A4 / Legal
Funksjoner
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Options and Consumables

Paper Handling Options
  • Paper Handling Options
  • Consumables
  • Options

TK-3190
Mikrofin toner til 25.000 A4-sider. Startertonerens kapasitet er på 10 000 A4-sider. Gjennomsnittlig tonerytelse i samsvar med ISO/IEC 19752

MD3-1024
1GB Minneoppgraderinger

MDDR3-2GB
2GB Minneoppgraderinger

HD-6
32 GB SSD Hard disc: enkel dokumenthåndtering

HD-7
128 GB SSD Hard disc: enkel dokumenthåndtering

Datasikkerhetspakke (E) AC
ISO 15408 (Common Criteria) med sikkerhetsnivå EAL3

IB-36
Direkte Wi-Fi-kort

IB-50
Gigabit-Ethernet-kort 10BaseT / 100BaseTX / 1000BaseT (RJ-45)

IB-51
Trådløst LAN-grensesnitt: 802.11b/g/n

Tilleggsbakke for skanner (A) AC
Skann til søkbar PDF-løsning (innebygd OCR)

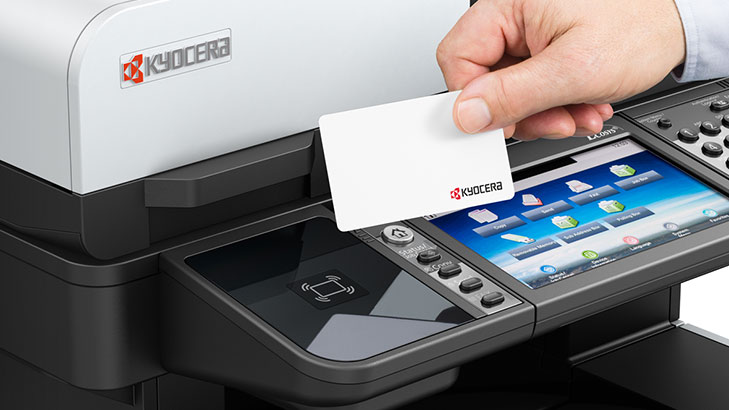

USB IC Card Reader + kortautentisering Kit (B)
Støtte for ulike autentiseringsløsninger

Card Authentication Kit (B)
Support for various authentication keys available

IC kortleser holder 10
For å integrere USB kortleser

UG-33
Støtte for ThinPrint

PCL Barcode SD
Tilleggsutstyr for en- og to-dimensjonale strekkoder til KYOCERA modellen (i tillegg til de standard maskin lesbare skrifttypene OCR-A, OCR-B)

KYOmulticode SD 3
Inneholder alle funksjoner med PCL Barcode Flash i tillegg til Unicode skrifttype “Andale Mono World Type“ som muliggjør bruken av Asiatiske skrifttyper (Japansk, Koreansk, daglig og tradisjonelt Kinesisk)

CB-360W
Cabinet High: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 51 cm (W x D x H)

CB-365W
Kabinett : Arbeidsbord i tre med mulighet for oppbevaring

CA-3100
Caster stand
