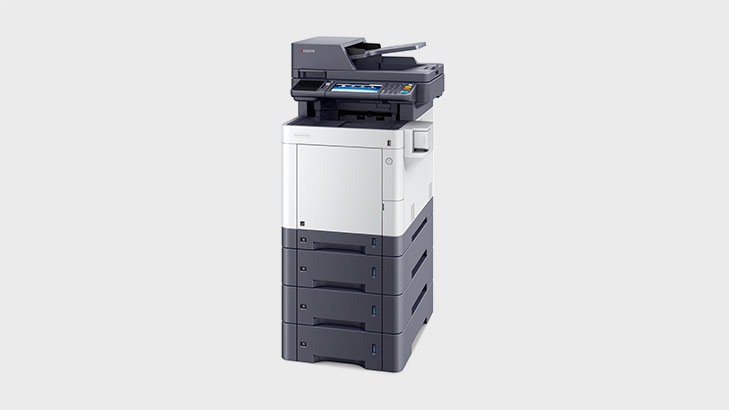

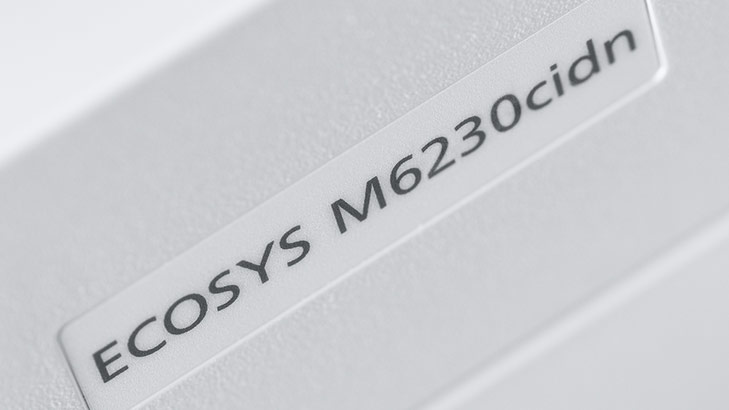

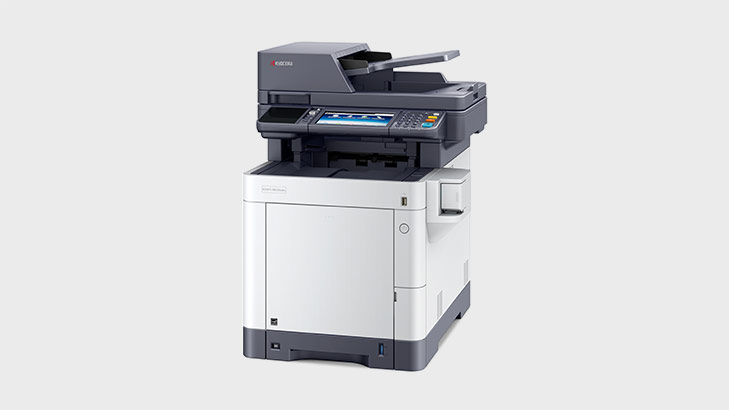

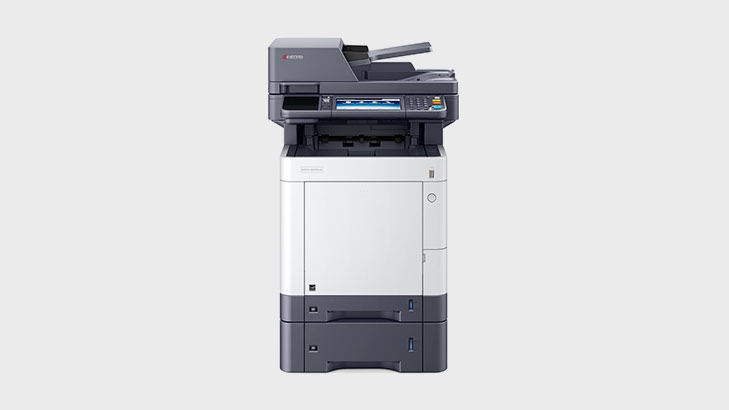

    ECOSYS M6230cidn

    This A4 colour device is designed specifically for medium and large-sized work groups, offering both reliability and fast 30ppm output.

    • Double-sided print, copy and scan.

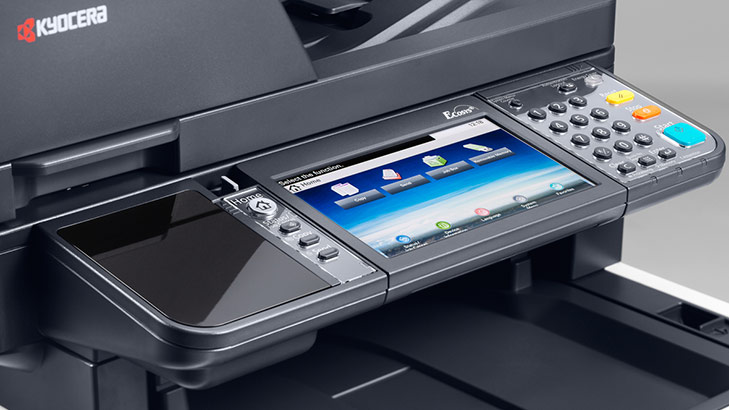

    • 7-inch full-colour touch panel provides ease of use.
    • HyPAS™ solution platform enables powerful customisations.
    Hastighet

    Up to 30 pages A4 per minute in colour and b/w

    Oppløsning

    1200 x 1200 dpi (print, at reduced speed) 600 x 600 dpi (scan/copy)

    Warranty

    Additional warranty on long-life parts for 3 years or 200 000 pages

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • Multi-Functional Products for day-to-day tasks

      Multi-Functional Products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

      Multi-Functional Products for day-to-day tasks
      Multi-Functional Products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • A3 and A4 printers for all needs

      A3 and A4 printers for all needs

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

      A3 and A4 printers for all needs
      A3 and A4 printers for all needs

      High quality, high reliability and high efficiency are essential.

    • ECOSYS: The sustainable solution

      ECOSYS: The sustainable solution

      KYOCERA’s A3 and A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

      ECOSYS: The sustainable solution
      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

    • ECOSYS M6230cidn drivers
    • ECOSYS M6230cidn documentation
    • ECOSYS M6230cidn software

    Main Specifications

    General
    • General
    • Paper Handling
    • Print
    • Copy
    • Scan
    Generell type
    Colour multifunctional for A4 format
    Hastighet
    Up to 30 pages A4 per minute in colour and b/w
    Oppvarming
    Approx. 26 seconds or less
    Energiforbruk
    Printing: 496 W Copying: 521 W Low power mode: -- W Ready mode: 70 W Sleep-mode: 0.6 W
    Garanti
    1-year warranty as standard.** KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
    Magasinkapasitet
    100-sheet multi-purpose tray, 60–220 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 250-sheet Standard universal paper cassette, 60–163 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm)
    Maks. innkapasitet med alternativer
    1,850 sheets
    Dupleks enhet
    Duplex as standard supports 60 – 163 g/m²; A4, A5, B5, Letter, Legal
    Produksjonskapasitet for papirhåndtering
    Max. 250 sheets face-down with paper full sensor
    Dokumentmater
    Reversing document processor: 75-sheet, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
    Prosessor
    Cortex-A9 Dual core 1,2 GHz
    Skrifttyper
    93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts (Windows Vista), 1 Bitmap font, 45 types of onedimensional barcodes, 1 type of two-dimensional barcode (PDF417)
    Funksjoner
    Security features: IPSec, HTTPS, SNMPv3, IPPS, Encrypted PDF Direct Print, Private Print, Secure printing via SSL, POP over SSL, SMTP over SSL, Access control via 100 integrated department codes Data Security Kit (E) protects data on the optional SSD
    Operativsystem (Print)
    All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
    Maks. størrelse
    A4/legal
    Kontinuerlig kopiering
    1 - 999
    Zoom
    25 - 400 % in 1% steps
    Forstørrelsesnivåer
    5 Reductions / 5 Enlargements
    Bildejusteringer
    Text + Photo, Photo, Text, Map, Printed document
    Funksjoner
    Auto Colour Mode, Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change, copy density control
    Funksjoner
    Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN, WIA , WSD scan
    Hastighet
    60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi,A4 colour), 26 ipm (300 dpi, A4, b/w) (Duplex), 17 ipm (300 dpi, A4 colour) (Duplex)
    Scan features
    Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
    Oppløsning
    600, 400, 300, 200 dpi, 256 greyscales per colour
    Maks. størrelse
    A4 / legal
    Filtype
    TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)
    Bildeoptimalisering
    Text, photo, text + photo, light text, optimised for OCR

    Options and Consumables

    Paper Handling Options
    • Paper Handling Options
    • Consumables
    • Options

    TK-5270C
    Gjennomsnittlig kontinuerlig toner i samsvar med ISO/IE C19798 Microfine toner cyan for 5.000 sider A4 i samsvar med ISO/IEC 19798 Kapasiteten til start toner cyan er 2.500 sider A4 i samsvar med ISO/IEC 19798

    TK-5270K
    Gjennomsnittlig kontinuerlig toner i samsvar med ISO/IE C19798 Microfine toner svart til 7.000 sider A4 i samsvar med ISO/IE C 19798 Kapasiteten til start toner svart til 3.500 sider A4 i samsvar med ISO/IEC 19798

    TK-5270M
    Gjennomsnittlig kontinuerlig toner i samsvar med ISO/IE C19798 Microfine toner magenta for 5.000 sider A4 i samsvar med ISO/IEC 19798 Kapasiteten til start toner magenta er 2.500 sider A4 i samsvar med ISO/IEC 19798

    TK-5270Y
    Gjennomsnittlig kontinuerlig toner i samsvar med ISO/IE C19798 Microfine toner gul toner er 5.000 sider A4 i samsvar med ISO/IEC 19798 Kapasiteten til start toner gul er 2.500 sider A4 i samsvar med ISO/IEC 19798

    Datasikkerhetspakke (E) AC
    ISO 15408 (Common Criteria) med sikkerhetsnivå EAL3

    HD-6
    32 GB SSD Hard disc: enkel dokumenthåndtering

    HD-7
    128 GB SSD Hard disc: enkel dokumenthåndtering

    IB-36
    Direkte Wi-Fi-kort

    IB-50
    Gigabit-Ethernet-kort 10BaseT / 100BaseTX / 1000BaseT (RJ-45)

    IB-51
    Trådløst LAN-grensesnitt: 802.11b/g/n

    IC kortleser holder 10
    For å integrere USB kortleser

    KYOmulticode SD 3
    Inneholder alle funksjoner med PCL Barcode Flash i tillegg til Unicode skrifttype “Andale Mono World Type“ som muliggjør bruken av Asiatiske skrifttyper (Japansk, Koreansk, daglig og tradisjonelt Kinesisk)

    MD3-1024
    1GB Minneoppgraderinger

    MDDR3-2GB
    2GB Minneoppgraderinger

    PCL Barcode SD
    Tilleggsutstyr for en- og to-dimensjonale strekkoder til KYOCERA modellen (i tillegg til de standard maskin lesbare skrifttypene OCR-A, OCR-B)

    Tilleggsbakke for skanner (A) AC
    Skann til søkbar PDF-løsning (innebygd OCR)

    UG-33
    Støtte for ThinPrint

    USB IC Card Reader + kortautentisering Kit (B)
    Støtte for ulike autentiseringsløsninger
