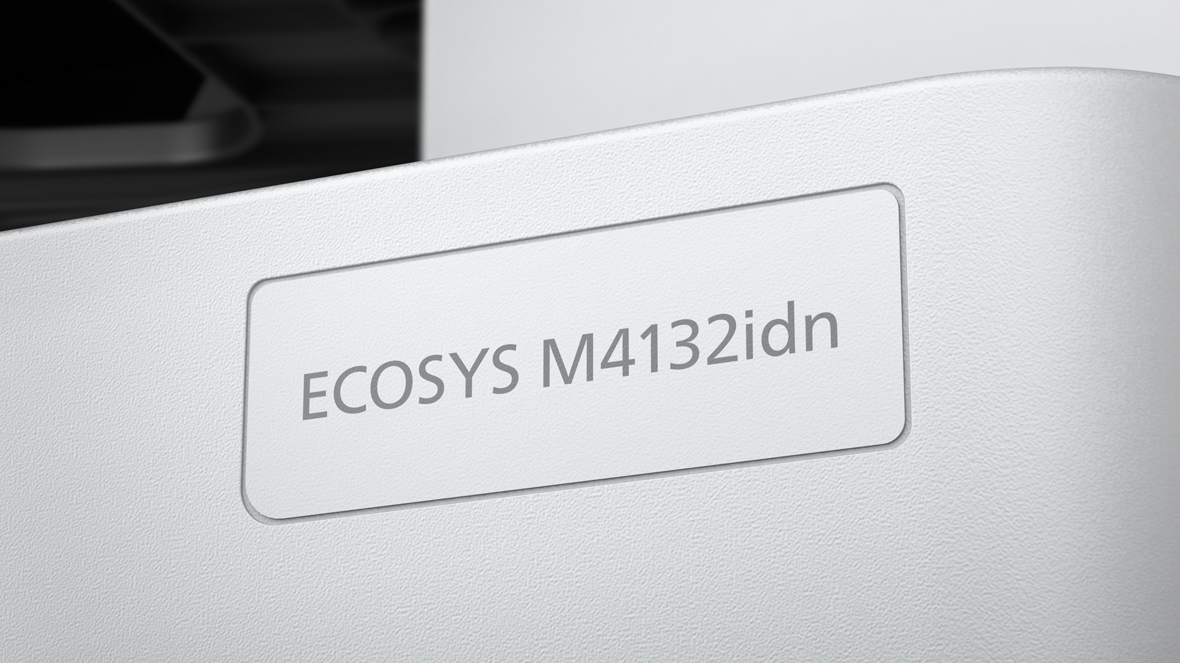

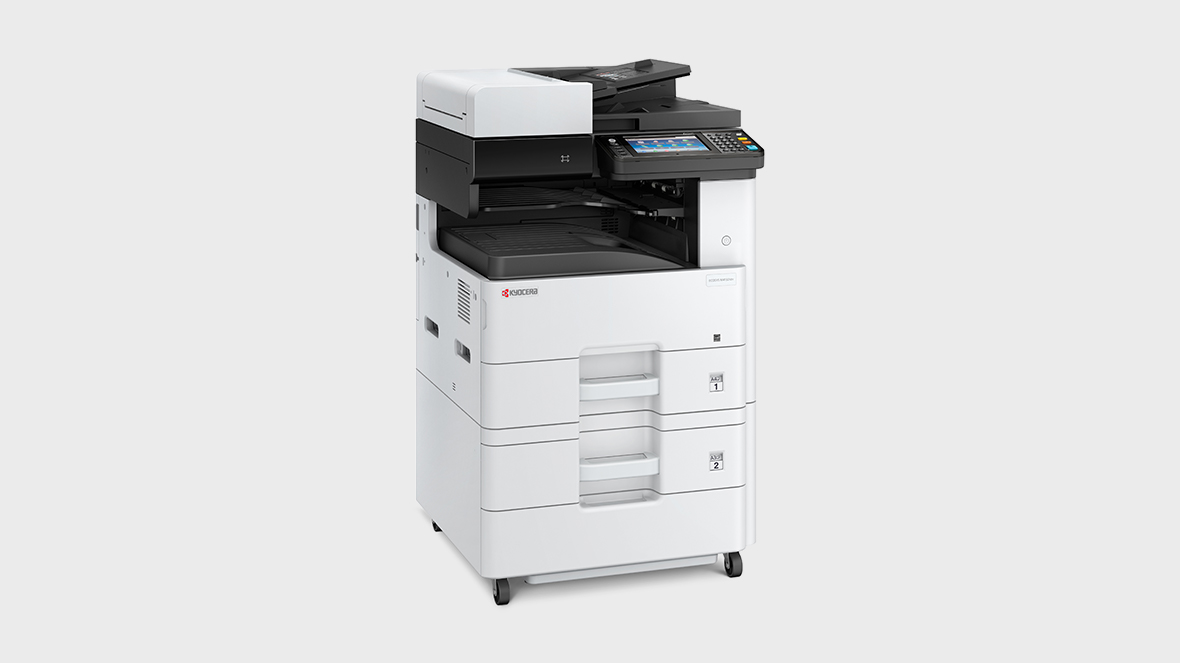

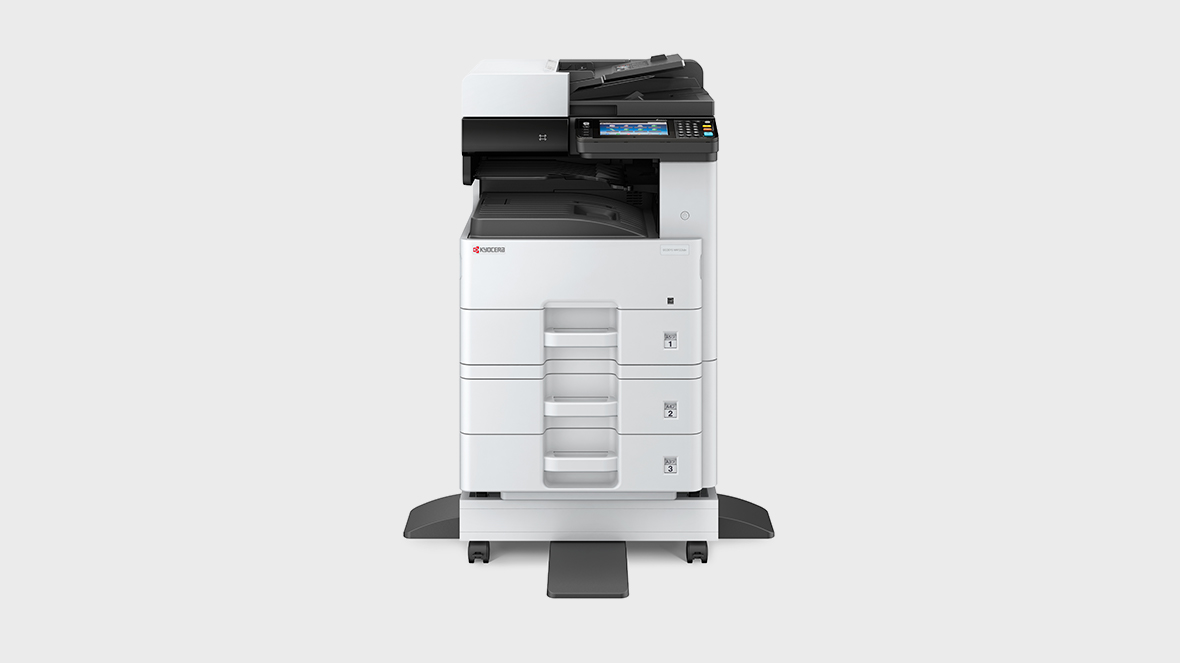

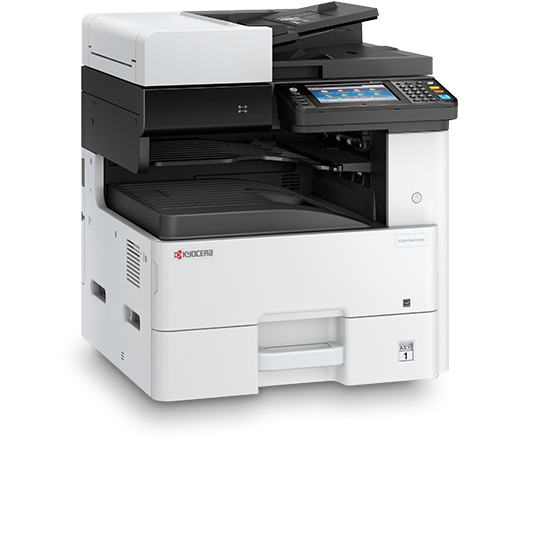

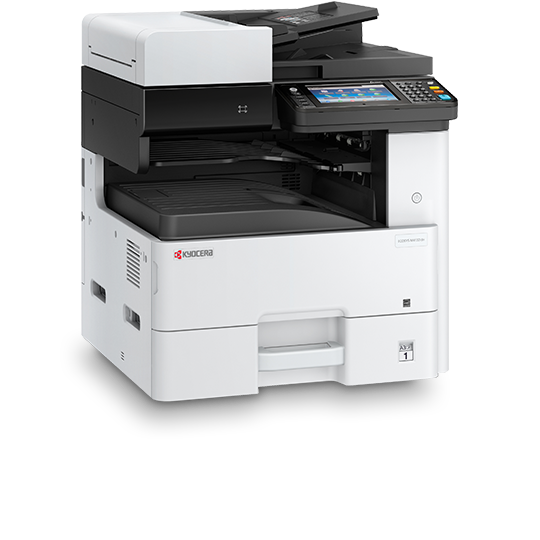

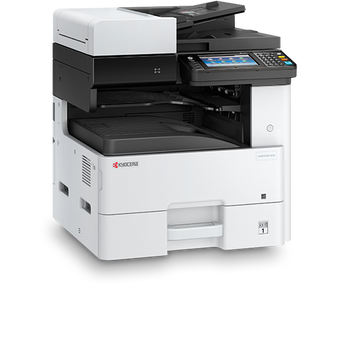

ECOSYS M4132idn

A4/A3 monochrome Multi-Functional Product with 32 page per minute efficiency (A4) for small offices and workgroups seeking to a solution with functionality, usability and compact in size.

Minimum installation and operation requirements.

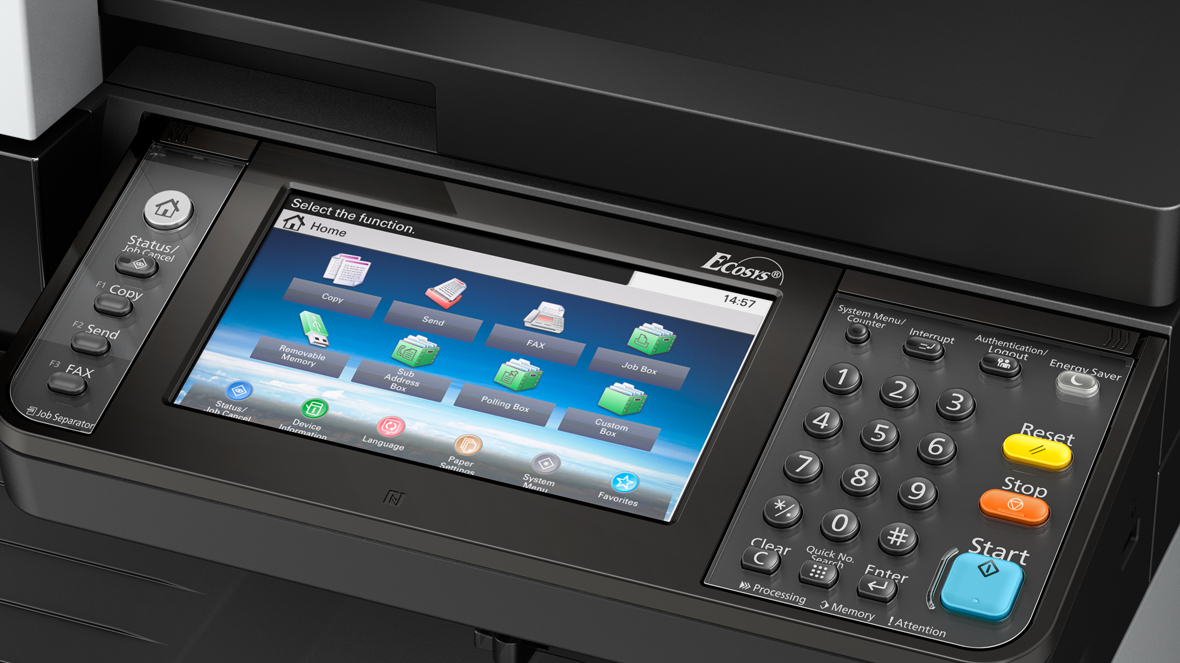

Easy-to-use full-colour touchscreen panel.
Long-life components provide exceptional reliability.
HyPAS solution platform enables powerful customisations.

Hastighet

Up to 32/17 pages A4/A3 per minute (print/copy)

Oppløsning

1200 x 1200 dpi (print), 600 x 600 dpi (scan/copy)

Mål (B x D x H)

590x590x688 mm (with standard Document Processor)

Warranty

Additional warranty on long-life parts for 3 years or 300 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Multi-Functional Products for day-to-day tasks

Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

Multi-Functional Products for day-to-day tasks

Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.
A3 and A4 printers for all needs

KYOCERA’s A3 and A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture , and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

A3 and A4 printers for all needs

High quality, high reliability and high efficiency are essential.
ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

ECOSYS M4132idn drivers
ECOSYS M4132idn documentation
ECOSYS M4132idn software

Main Specifications

General

General
Paper Handling
Print
Copy
Scan
Fax

Generell type

Monochrome multifunctional for A4/ A3 format

Hastighet

Up to 32/17 pages A4/A3 per minute (print/copy)

Oppvarming

20 seconds or less

Energiforbruk

Sleep-mode: 0.5 W, Ready mode: 60 W, Copying/Printing: 515 W

Garanti

1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.

Magasinkapasitet

100-sheet multi-purpose tray, 45–256 g/m²: A3, A4, A5, A6, B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x 432 mm), 500-sheet standard universal paper cassette; 60–163 g/m², A3, A4, A5,´B5, Ledger, Letter, Legal, Folio

Maks. innkapasitet med alternativer

1,600 sheets

Dupleks enhet

Duplex as standard supports 60–163 g/m²

Produksjonskapasitet for papirhåndtering

Max. 300 sheets: 250 sheets face-down (Main Tray), plus 50 sheets (standard Job Separator Tray)

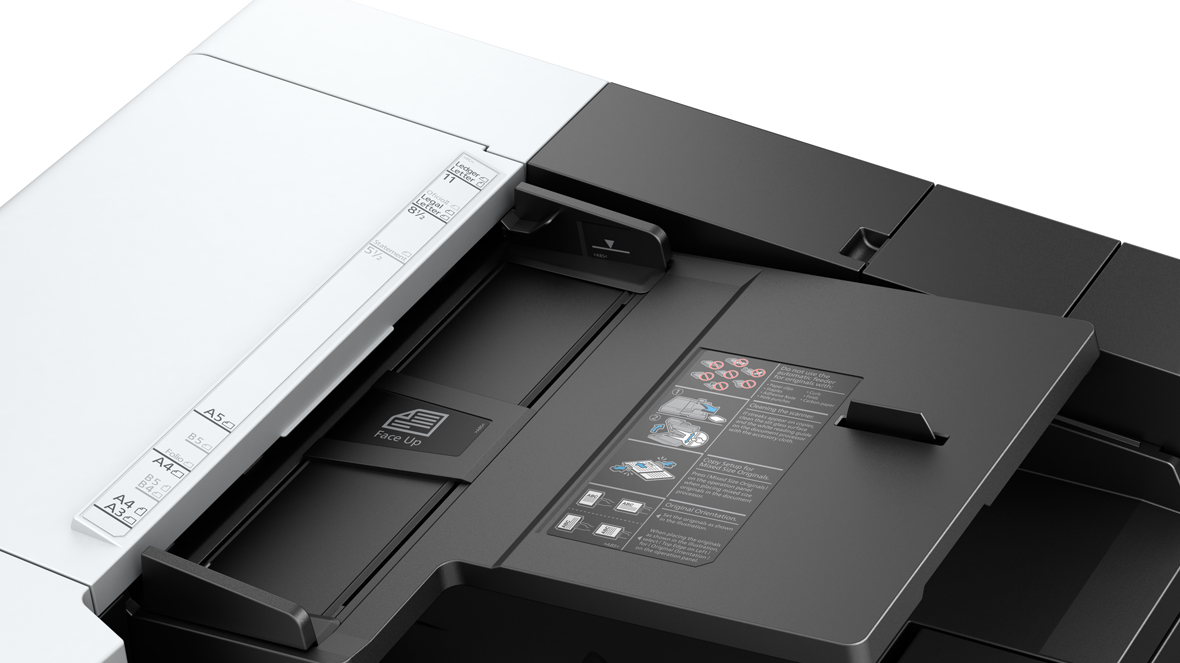

Dokumentmater

Standard reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140x182 to 297x432mm)

Prosessor

ARM Cortex-A9 Dual core1.2 GHz

Skrifttyper

101 outline fonts (PCL 6, KPDL 3, Windows Vista), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Funksjoner

Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print , Quick Copy, Proof and Hold, Job Storage and Job Management functionality

Operativsystem (Print)

All current Windows operating systems, MAC OS X Version 10.5 or higher, Unix, Linux as well as other operating systems on request

Maks. størrelse

A3/Ledger

Kontinuerlig kopiering

1 - 999

Zoom

25 - 400 % in 1% steps

Forstørrelsesnivåer

5 Reductions/5 Enlargements

Bildejusteringer

Text, Photo, Text + Photo, Map, Copy/Printout

Funksjoner

Scan-once-copy-many, electronic sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through, ID Card Copy, Skip blank page

Funksjoner

Scan-to-email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN, WIA, WSD scan

Hastighet

50 ipm (300 dpi, A4, b/w), 50 ipm (300 dpi, A4, colour)

Scan features

Colour Scan integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

Oppløsning

200 dpi, 300 dpi, 400 dpi, 600 dpi (256 greyscales per colour)

Maks. størrelse

A3/Ledger

Filtype

PDF, PDF/A, JPG, TIFF, Open XPS, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF, High Compression PDF

Bildeoptimalisering

Text, photo, text + photo, light text, optimized for OCR

Kompatibilitet

ITU-T Super G3

Modem

Maks. 33,6 kbps

Hastighet

2.0 seconds or less

Overføringshastighet

Max. 33.6 kbps

Maks. størrelse

Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm, Halftone: 256 gray scales

Maks. størrelse

A3/Ledger

Funksjoner

Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Options and Consumables

Paper Handling Options

Paper Handling Options
Consumables
Options

SH-10
Stiftekassett 3 x 5,000

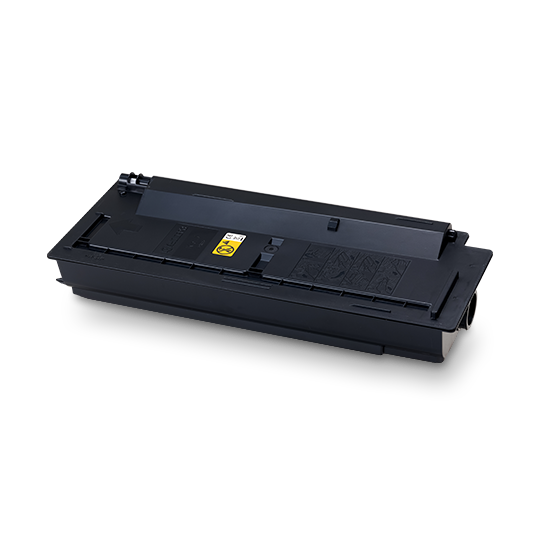

TK-6115
Toner sort for 15.000 sider. Gjennomsnittlig kontinuerlig toner i samsvar med 5% dekning av A4.

CB-470
Wooden cabinet

CB-471
Base unit

CB-472
Metal cabinet

CB-473
Skriverkabinett: Tre

Card Authentication Kit (B)
Support for various authentication keys available

Datasikkerhetspakke (E) AC
ISO 15408 (Common Criteria) med sikkerhetsnivå EAL3

Fax System 13
Super G3 faks, faks nettverk

HD-6
32 GB SSD Hard disc: enkel dokumenthåndtering

HD-7
128 GB SSD Hard disc: enkel dokumenthåndtering

IB-36
Direkte Wi-Fi-kort

IB-50
Gigabit-Ethernet-kort 10BaseT / 100BaseTX / 1000BaseT (RJ-45)

IB-51
Trådløst LAN-grensesnitt: 802.11b/g/n

KYOmulticode SD 3
Inneholder alle funksjoner med PCL Barcode Flash i tillegg til Unicode skrifttype “Andale Mono World Type“ som muliggjør bruken av Asiatiske skrifttyper (Japansk, Koreansk, daglig og tradisjonelt Kinesisk)

MD3-1024
1GB Minneoppgraderinger

MDDR3-2GB
2GB Minneoppgraderinger

PCL Barcode SD
Tilleggsutstyr for en- og to-dimensjonale strekkoder til KYOCERA modellen (i tillegg til de standard maskin lesbare skrifttypene OCR-A, OCR-B)

Tilleggsbakke for skanner (A) AC
Skann til søkbar PDF-løsning (innebygd OCR)

UG-33
Støtte for ThinPrint
