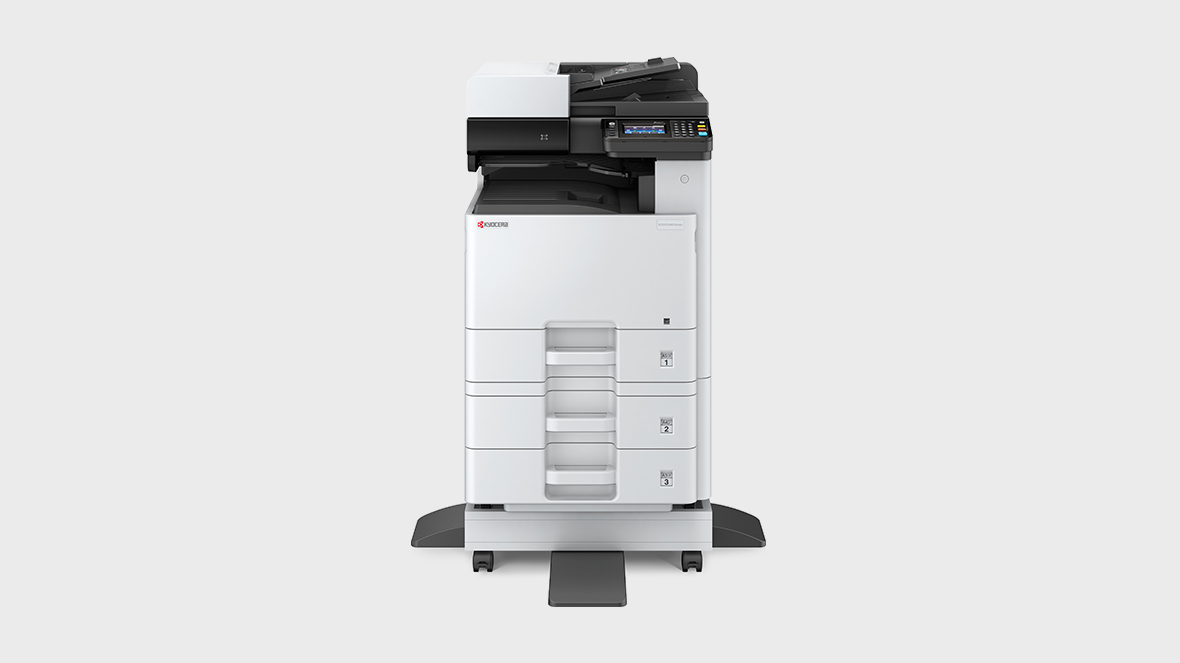

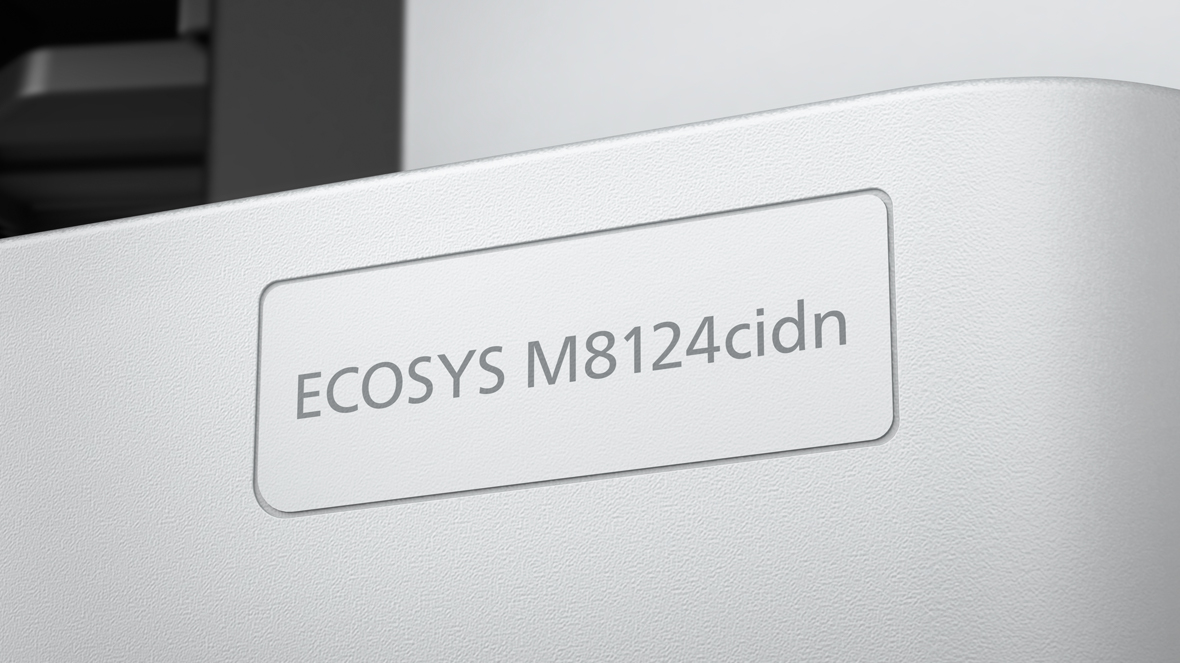

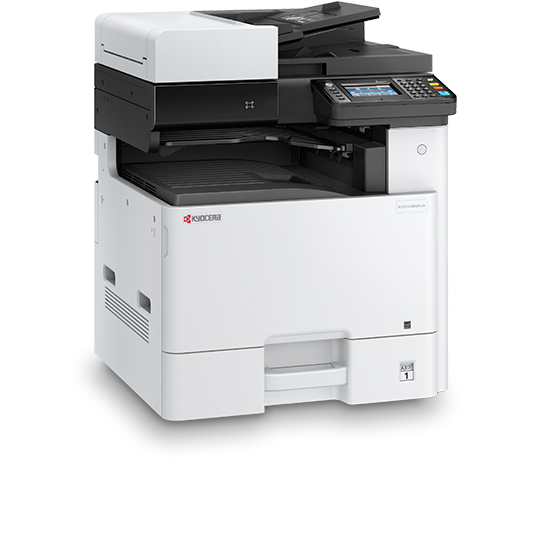

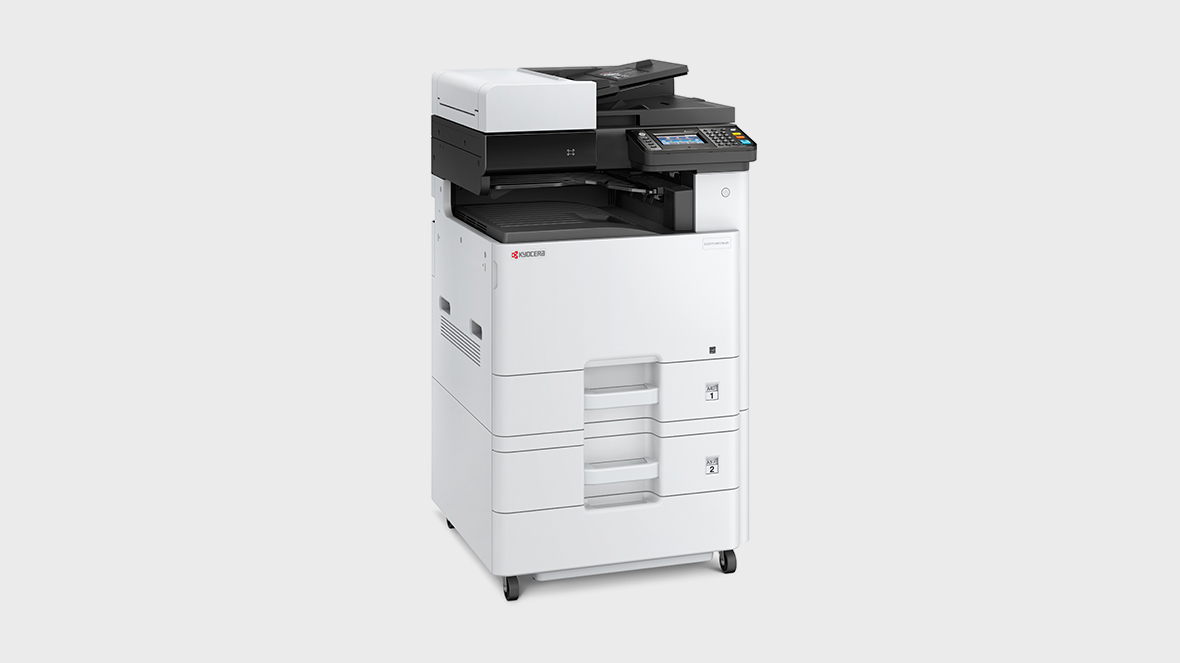

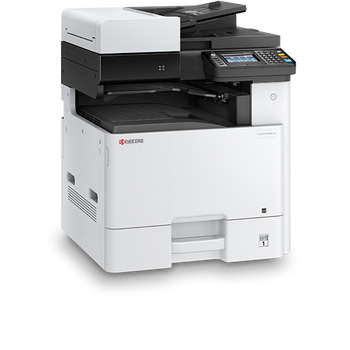

ECOSYS M8124cidn

An A4/A3 colour Multi-Functional Product with 24 page per minute productivity (in A4). It’s ideal for small teams given the machine’s functionality, usability and compact size.

Minimum installation and operation requirements.

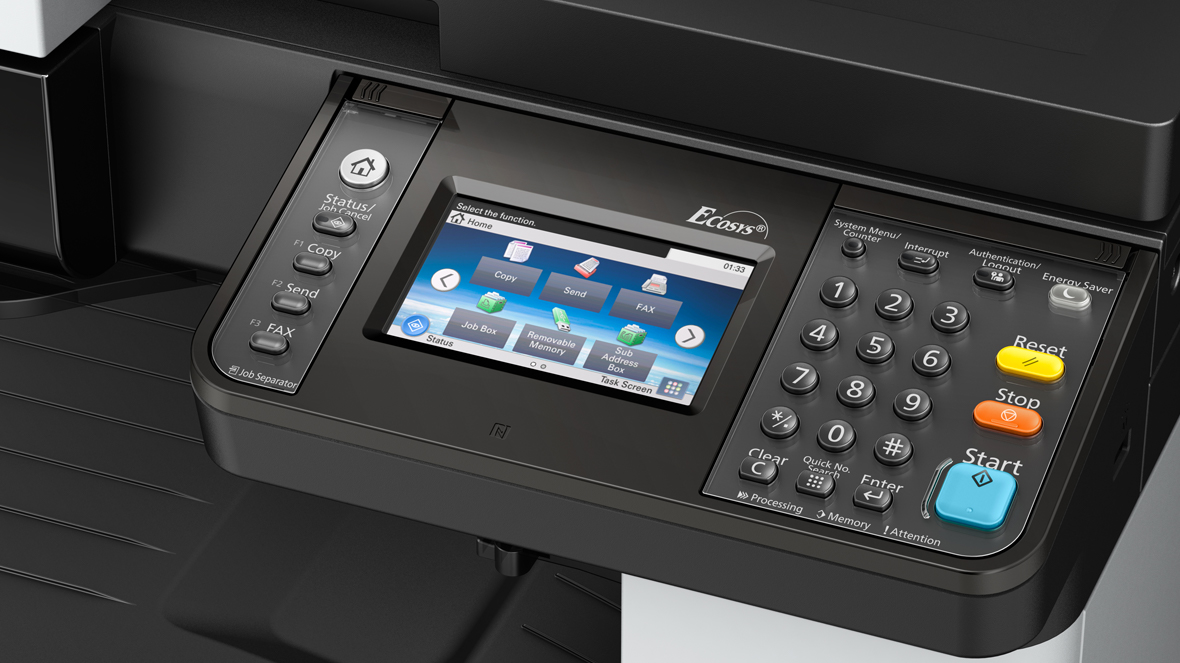

Easy to use full colour touch panel with wizard-style navigation.
Long-life components provide exceptional reliability.
HyPAS solution platform enables powerful customisations.

Hastighet

Up to 24/12 pages A4/A3 per minute in colour and b/w

Oppløsning

1200 x 1200 dpi (print) 600 x 600 dpi (scan/copy)

Mål (B x D x H)

590 x 590 x 753 mm (with standard Document processor)

Warranty

Additional warranty on long-life parts for 3 years or 200 000 pages

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Multi-Functional Products for day-to-day tasks

Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

Multi-Functional Products for day-to-day tasks

Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.
ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.
A3 and A4 printers for all needs

KYOCERA’s A3 and A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

A3 and A4 printers for all needs

High quality, high reliability and high efficiency are essential.

ECOSYS M8124cidn drivers
ECOSYS M8124cidn documentation
ECOSYS M8124cidn software

Main Specifications

General

General
Paper Handling
Print
Copy
Scan
Fax

ARTIKKELTYPE

Colour Multifunctional for A4/A3 Format

Hastighet

Up to 24/12 pages A4/A3 per minute in colour and b/w

Oppvarming

Approx. 30 seconds or less

Energiforbruk

Sleep-mode: 0.5 W, Stand-by: 80 W, Copying/Printing: 510 W

Garanti

1-year warranty as standard (depending on the country). KYOCERA guarantees the drum and developer for 3 years or 300,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.

Magasinkapasitet

100-sheet multi-purpose tray, 60–256 g/m²: A3, A4, A5, A6, B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x 432 mm) 500-sheet standard universal paper cassette, 60–256 g/m², A3, A4, A5, B5, Ledger, Letter, Legal, Folio

Maks. innkapasitet med alternativer

1,600 sheets

Dupleks enhet

Standard duplex unit: 60–256 g/m²

Produksjonskapasitet for papirhåndtering

Max. 280 sheets; 250 sheets face-down (main tray), plus 30 sheets (standard Job Separator Tray)

Document processor

Standard reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140x182 to 297x432mm)

Prosessor

ARM Cortex-A9 Dual core1.2 GHz

Skrifttyper

101 outline fonts (PCL 6, KPDL3, Windows Vista), 1 bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Funksjoner

Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality

Operativsystem (Print)

All current Windows operating systems, Mac OS X Version 10.5 or higher, UNIX LINUX , as well as other operating systems on request.

Max. original size

A3/Ledger

Continuous copy

1 - 999

Zoom range

25 - 400 % in 1% steps

Preset magnification ratios

5 Reductions / 5 Enlargements

Image adjustments

Text, photo, text + photo, Map, Printed document

Digital copy features

Scan-once-copy-many, sort, 2in1, 4in1, job

Scan functionalities

Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan-to-USB Host, Network TWAIN, WIA, WSD scan

Scan speed

b/w: 50 ipm (300 dpi, A4), Colour: 50 ipm (300 dpi, A4)

Scan features

Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

Scan resolution

200, 300, 400, 600 dpi (256 greyscales per colour)

Max. scan size

A3/Ledger

File type

PDF, PDF/A, JPG, TIFF, XPS, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF High Compresson PDF

Original recognition

Text, photo, text + photo, light text, optimised for OCR

Compatibility

ITU-T Super G3

Modem speed

Max. 33.6 kbps

Scanning speed

2.0 second or less

Transmission speed

Max. 33.6 kbps

Scanning density

Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm, Halftone: 256 gray scales

Max. original size

A3/Ledger

Fax features

Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

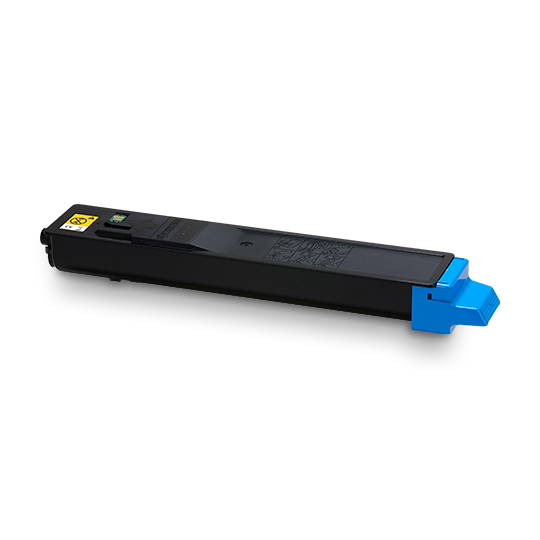

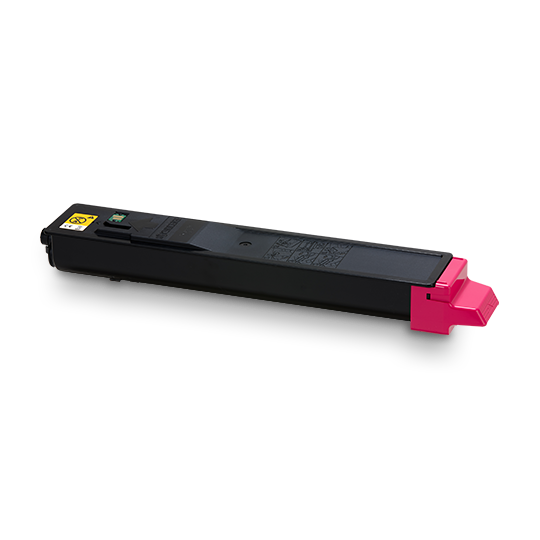

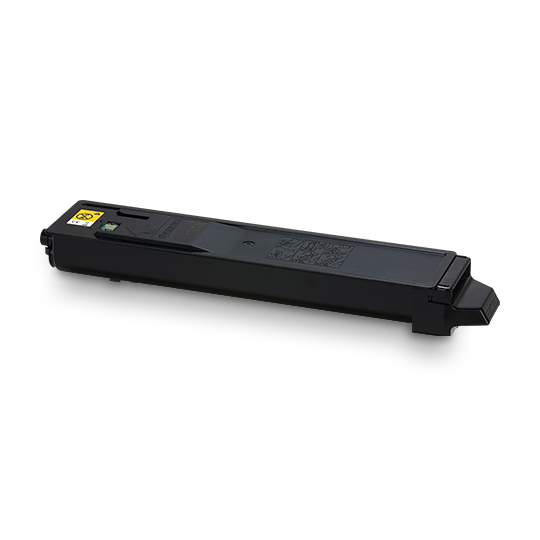

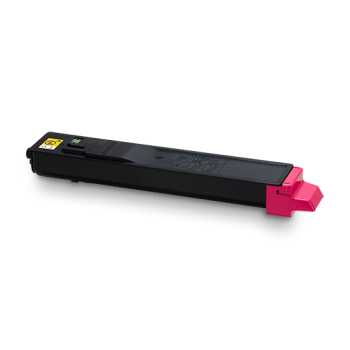

Options and Consumables

Paper Handling Options

Paper Handling Options
Options

Fax System 13
Super G3 faks, faks nettverk

KYOmulticode SD 3
Inneholder alle funksjoner med PCL Barcode Flash i tillegg til Unicode skrifttype “Andale Mono World Type“ som muliggjør bruken av Asiatiske skrifttyper (Japansk, Koreansk, daglig og tradisjonelt Kinesisk)

PF-470
Paper feeder
